Hiboy EX11 Full Suspension Electric Bike

The Hiboy EX11 is a full-suspension fat-tire e-bike for long outdoor rides: a 750W motor (880W peak) with 90 Nm of torque and a torque sensor, up to 28 mph on pedal assist, and a removable 48V 18Ah (864Wh) battery rated for up to 100 miles.

A 4-link rear suspension, an 80mm lockout dual-crown fork, dual-piston hydraulic brakes with 180mm rotors, a 3.5-inch color display, 26 by 4 inch puncture-resistant tires, and a 300 lb payload. Chameleon or navy blue.

Financing available at checkout with Affirm, Klarna, Afterpay, or PayPal. Free shipping to the lower 48 states.

Brand: Electric Bike, Hiboy

SKU: HIBOY-EX11

Original price was: $1,999.00.Current price is: $1,299.00.-35% OFF

Out of stock

1 Year Warranty

Industry-leading warranty, Including the battery and electric motor!

14-Day Return

Change of Mind Return Accepted. Send it back for a refund.

Hiboy EX11

Full suspension. Torque sensor. One hundred miles.

The EX11 is Hiboy’s outdoor flagship: a 4-link rear end, a lockout dual-crown fork, a torque-sensing 880W motor, and a battery rated for a hundred miles of pedal assist. Built for the trail out and the ride home.

880W peak motor90 Nm torque28 mphUp to 100 miFull suspensionHydraulic brakes

28 MPHMax Speed

100 MilesMax Range

880 WPeak Motor

90 NmTorque Sensor

Full SuspensioHorst-Link Design

26″ × 4″Fat Tires

Explore the EX11

Tap a feature. See what it does.

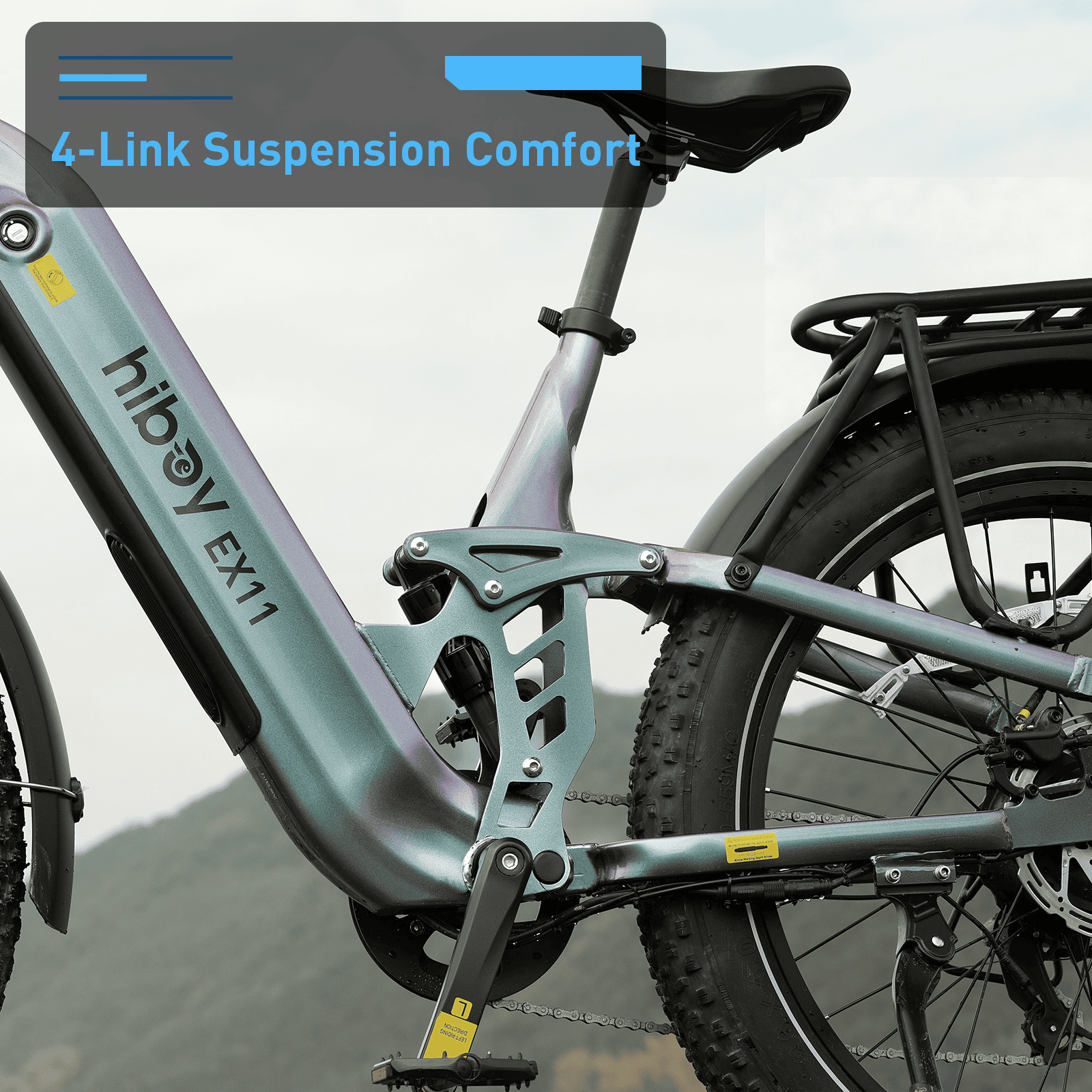

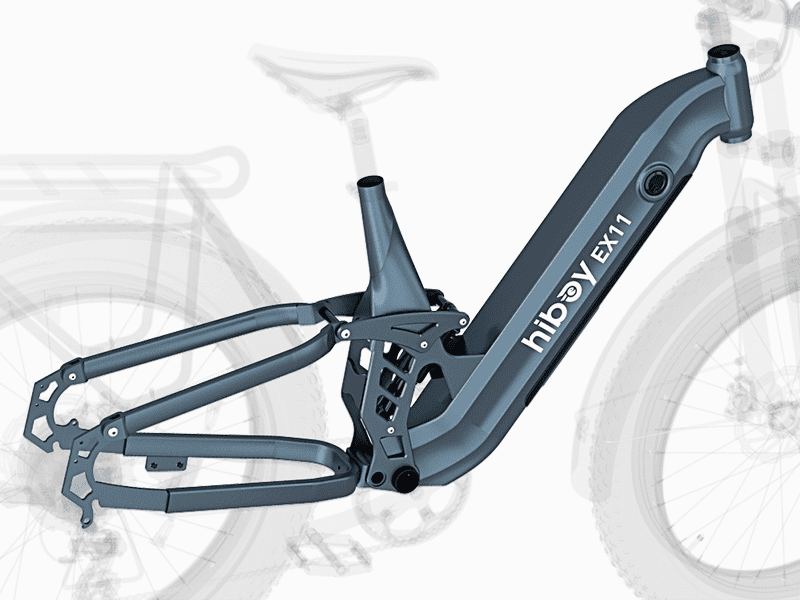

Ride Smoother, Stay Stable

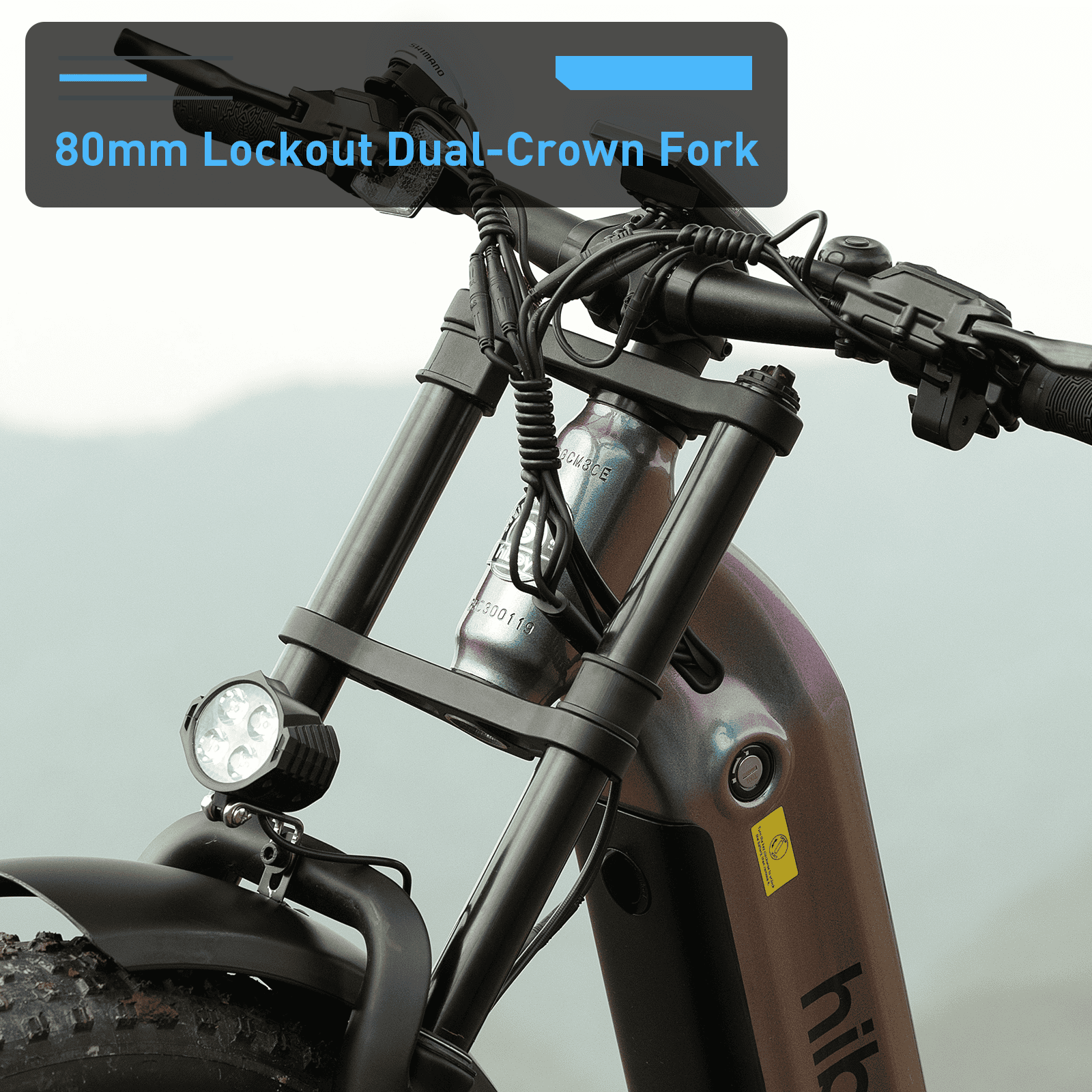

A four-bar rear suspension and an 80mm dual-crown fork with lockout. Gravel, roots, and potholes are absorbed rather than transmitted, and the fork locks for efficient pedaling on pavement.

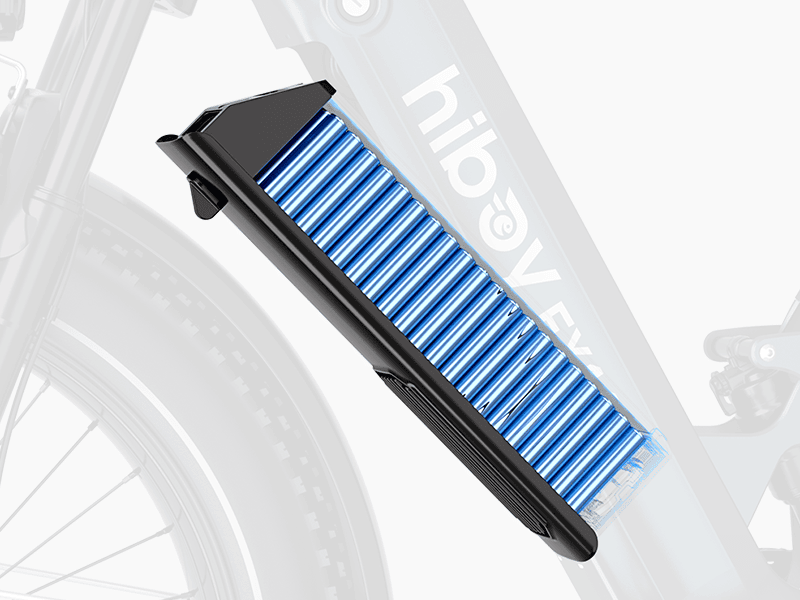

Up to 100 Miles for All-Day Outdoors

The removable 48V 18Ah (864Wh) battery is rated for 100 miles of pedal assist or 53 miles on throttle. Camping, fishing, and hunting trips stop being range-limited.

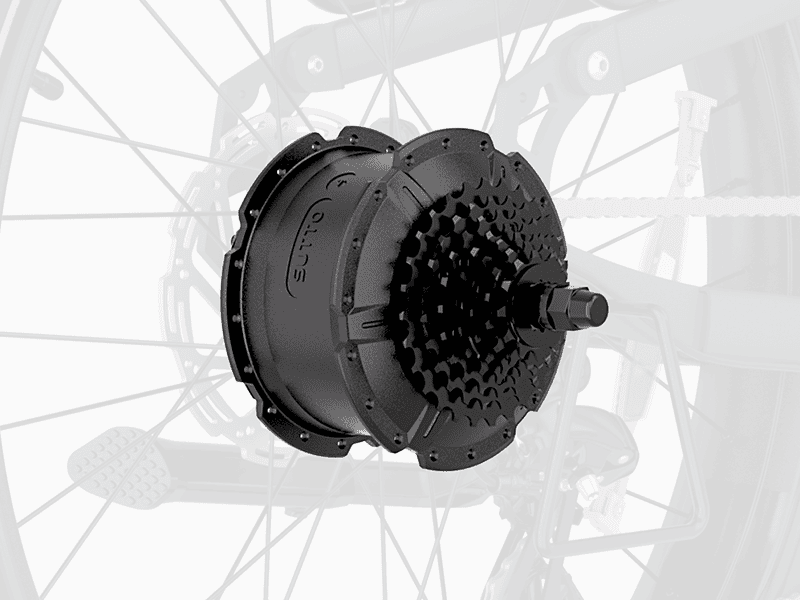

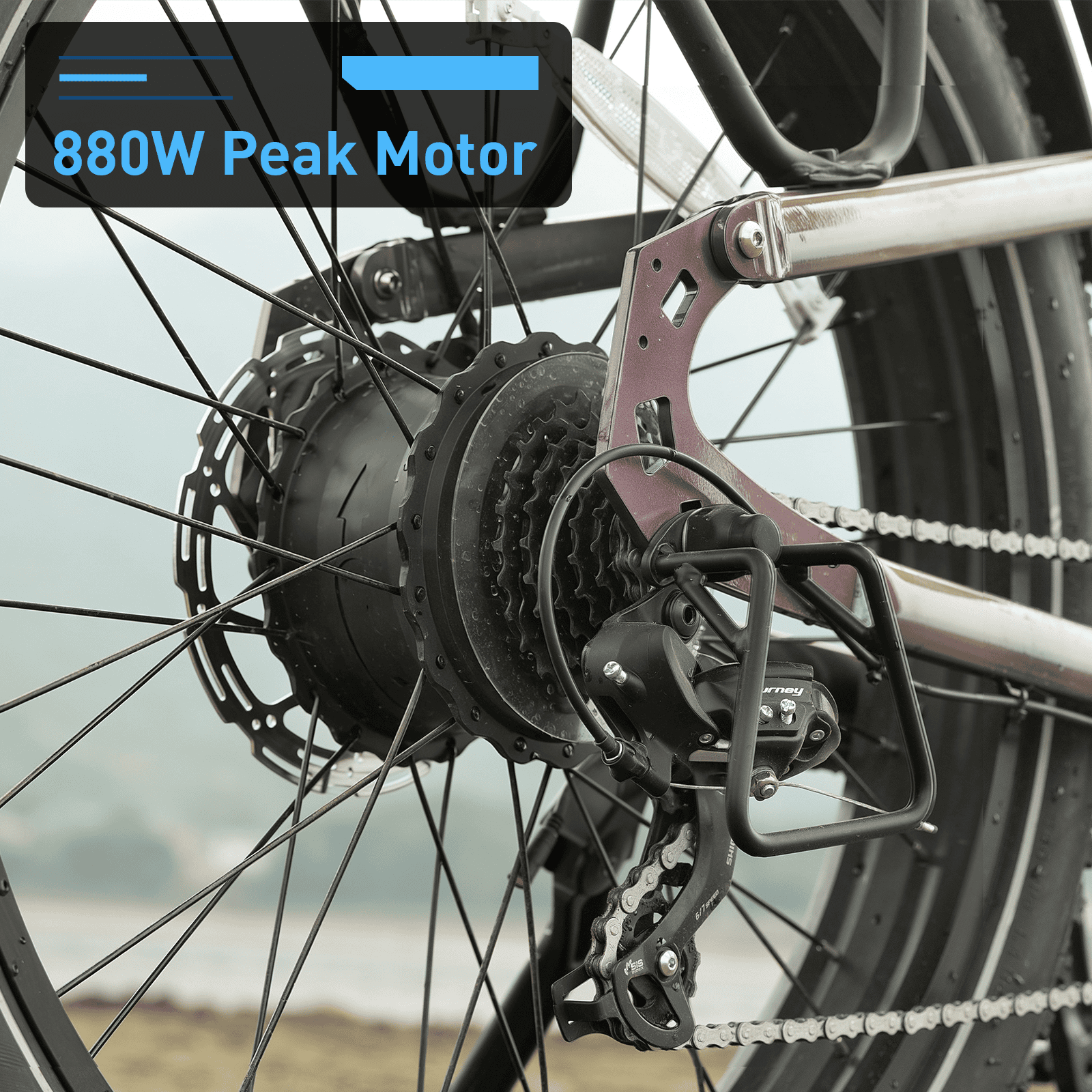

Climb Easier. Feel in Control

An 880W peak motor with 90 Nm of torque, driven by a torque sensor that meters assist to how hard you pedal. Starts are smooth and climbs are strong, with none of the surging of cadence sensors.

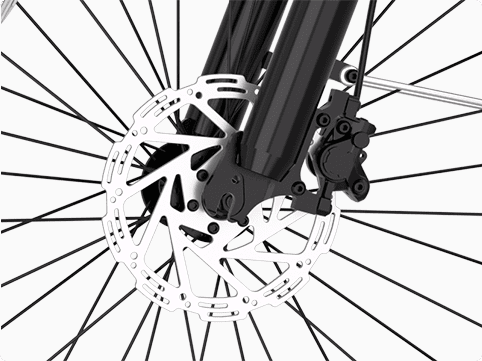

Stop with Confidence

Dual-piston hydraulic brakes on 180mm rotors. Loaded descents on loose gravel stay controlled.

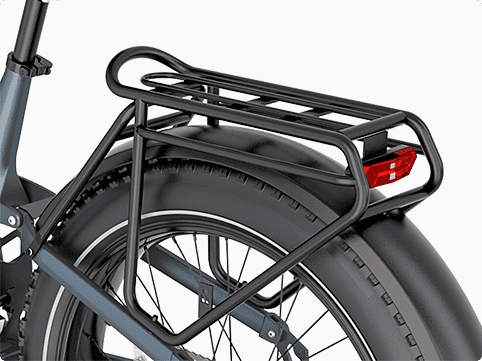

Carry More Gear

A 300 lb total payload and a rear rack rated for 55 lbs. Bring the gear you actually use outdoors.

Why the EX11

The fat-tire bike built for distance.

Most fat-tire e-bikes are hardtails with cadence sensors and 40-mile batteries. The EX11’s full suspension, torque sensor, and 864Wh pack are what you need when the ride is measured in hours rather than blocks.

Ships from our US warehouse with Hiboy’s 1-year warranty on the frame, motor, battery, and controller. Financing is available at checkout through Affirm, Klarna, Afterpay, and PayPal, and shipping is free to the lower 48 states.

Details that matter

Hover to look closer.

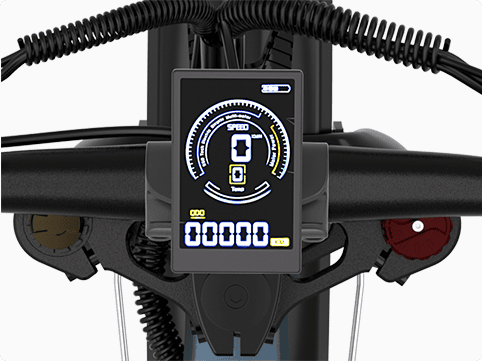

Hiboy EX11 Full Suspension Electric Bike: Clear Display, Easy Charging

Clear Display, Easy ChargingA 3.5-inch color display for speed, assist level, and range, plus a USB-C port.

Specifications

Every number, in one place.

Riding ModesBike / Pedal Assist / Pure Electric (Throttle)

E-Bike ClassClass 2 (Default) / Class 3 (Where Permitted)

Recommended Rider Height5’3″–6’3″

Motor Power750W Rated, 880W Peak

Motor Torque90 N·m

BatteryRemovable, 48V, 18Ah (864Wh)

SensorTorque Sensor

Display3.5″ Color Display

Charging Time:9–10 Hours

IP RatingBattery & Motor IP65; Controller IPX7

Top Speed20 MPH (Default) / Switchable to 28 MPH (Class 3, Pedal Assist Only, Where Permitted)

Pedal Assist Range (165 lbs)Up to 100 Miles (Tested)

Throttle Range (165 lbs)Up to 53 Miles

Max Climbing20%

Front Suspension80mm Lockout Dual-Crown Fork

Rear Suspension4-Link Rear Suspension

DrivetrainShimano 1×7

BrakesDual-Piston Hydraulic Disc Brakes

Rotors180mm

Tires26″ × 4.0″ Puncture-Resistant Fat Tires

Tire DetailsReflective Sidewalls

Net Weight99.2 lbs

Maximum Payload300 lbs

Rear Rack Load Capacity55 lbs

Bike Dimensions76.9″ × 27.2″ × 43.3″

RangeUp To 100 Miles

Peak Motor Power880W

Fat Tires26″ × 4″

Closer look

The EX11, in detail.

Hiboy EX11 Full Suspension Electric Bike feature banner 1

Hiboy EX11 Full Suspension Electric Bike feature banner 2

Hiboy EX11 Full Suspension Electric Bike feature banner 3

Hiboy EX11 Full Suspension Electric Bike feature banner 4

Hiboy EX11 Full Suspension Electric Bike feature banner 5

Hiboy EX11 Full Suspension Electric Bike feature banner 6

More to know

The rest of the story.

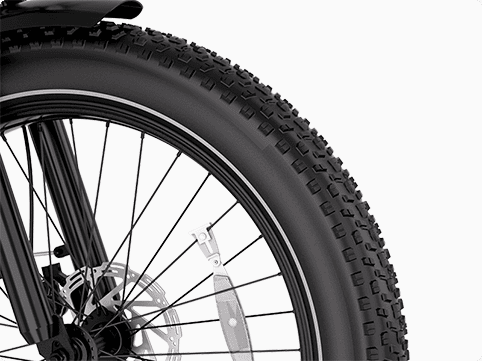

Grip + Flat Protection

Twenty-six by four inch puncture-resistant fat tires with reflective sidewalls. Traction on mixed terrain, fewer flats, and visibility on the ride back to camp.

In the box

What arrives at your door.

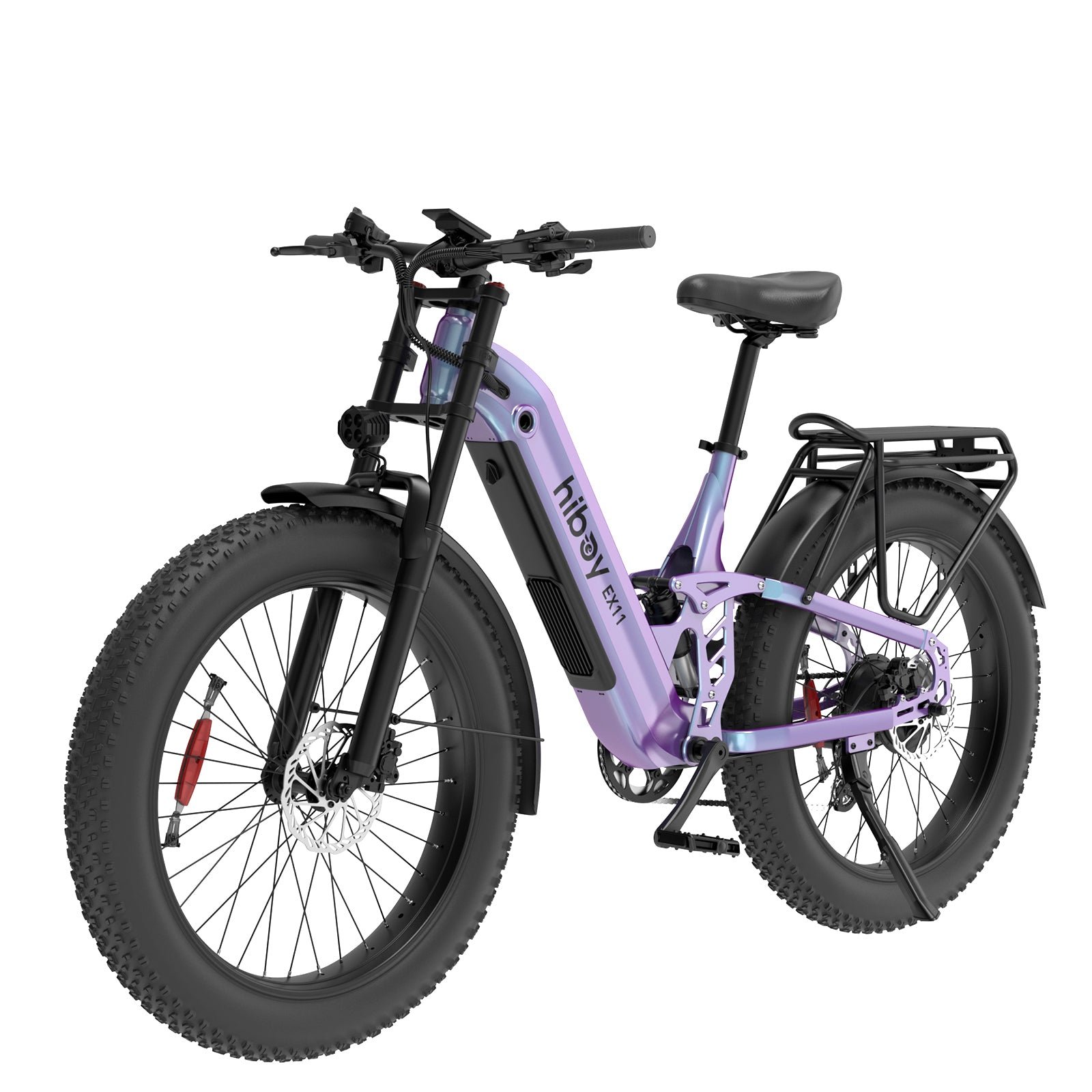

EX11 Electric Bike × 1

Hiboy EX11 Full Suspension Electric Bike in the box: Charger x 1

Charger × 1

Hiboy EX11 Full Suspension Electric Bike in the box: Installing tool x 2

Installing tool × 2

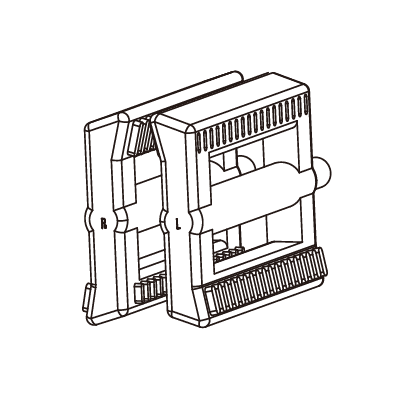

Hiboy EX11 Full Suspension Electric Bike in the box: Pedals (R and L) x 2

Pedals (R and L) × 2

Hiboy EX11 Full Suspension Electric Bike in the box: User manual x 1

User manual × 1

Hiboy EX11 Full Suspension Electric Bike in the box: Battery Key x 2

Battery Key × 2

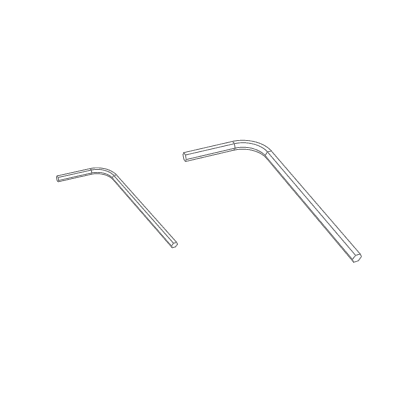

Hiboy EX11 Full Suspension Electric Bike in the box: Hexagon wrench x 2

Hexagon wrench × 2

Hiboy EX11 Full Suspension Electric Bike in the box: Phillips +5mm Hex Tool x 1

Phillips +5mm Hex Tool × 1

Size and fit

Will it fit you?

Measurements from the official size guide, in inches.

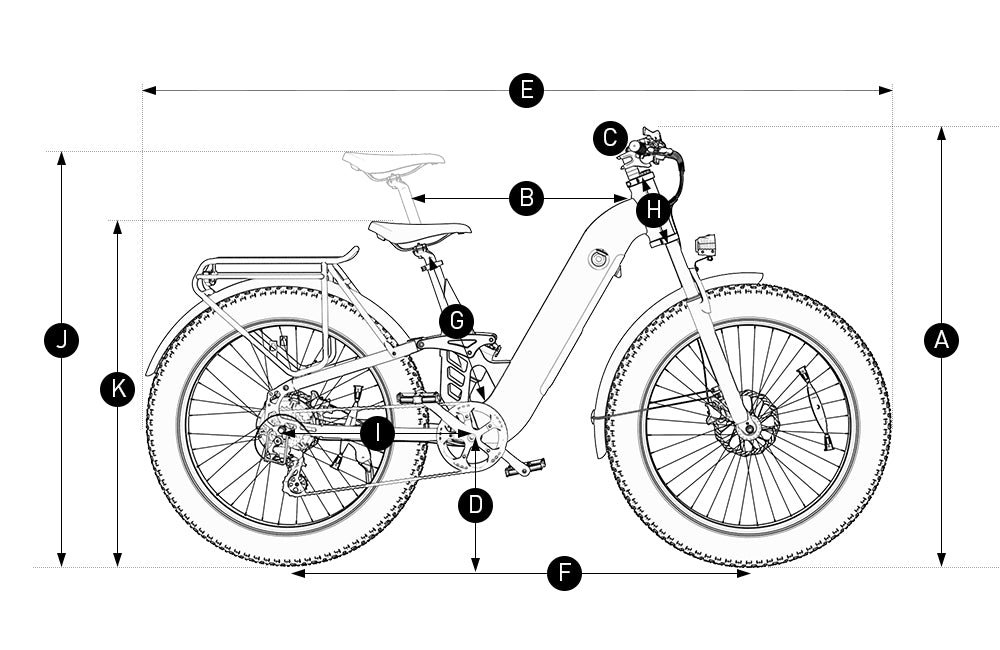

Hiboy EX11 Full Suspension Electric Bike dimensions diagram 1

A Handlebar Height (inch) 45.3
B Handlebar Reach (inch) 22
C Handlebar Width (inch) 26.7
D Standover Height (inch) 13.9
E Total Length (inch) 76.9
F Wheelbase (inch) 47.5
G Seat Tube Length (inch) 11.8
H Head Tube Length (inch) 5.5
I Chainstay Length (inch) 19.3
J Maximum Seat Height (inch) 44.8
K Minimum Seat Height (inch) 35.5
Recommended Rider Height 5’3″-6’5″

Good to know

Questions riders ask.

How fast does the Hiboy EX11 go?

It ships as Class 2 at 20 mph. Pedal assist can be switched to 28 mph (Class 3) where permitted.

What range should I expect?

Rated at 100 miles of pedal assist and 53 miles on throttle for a 165 lb rider. Heavier riders on hilly trails should plan on 50 to 70 miles with assist.

Is it good off-road?

Yes. Full suspension, 26 by 4 tires, and 90 Nm of torque make it capable on dirt roads, gravel, and singletrack.

What does the torque sensor do?

It measures how hard you press the pedals and matches assist to it, so the bike feels natural and never surges. Cadence-sensor bikes only know whether the pedals are turning.

Can it climb steep hills?

Rated for 20% grades, and the 90 Nm of torque makes steep starts easy.

Is the battery removable?

Yes, with a key. A full charge takes 9 to 10 hours.

How heavy is it?

About 99 lbs. It is a bike you ride to the trail, not one you lift onto a roof rack alone.

What riders does it fit?

Recommended for 5’3″ to 6’5″.

Ready for the long way home?

Free shipping to the lower 48, financing at checkout, 14-day returns.

Add to cart

Intended for riders aged 16 and older. Always wear a helmet and follow local laws.

Riding Modes	Bike / Pedal Assist / Pure Electric (Throttle)
E-Bike Class	Class 2 (Default) / Class 3 (Where Permitted)
Recommended Rider Height	5'3"–6'3"
Motor Power	750W Rated, 880W Peak
Motor Torque	90 N·m
Battery	Removable, 48V, 18Ah (864Wh)
Sensor	Torque Sensor
Display	3.5" Color Display
Charging Time:	9–10 Hours
IP Rating	Battery & Motor IP65; Controller IPX7
Top Speed	20 MPH (Default) / Switchable to 28 MPH (Class 3, Pedal Assist Only, Where Permitted)
Pedal Assist Range (165 lbs)	Up to 100 Miles (Tested)
Throttle Range (165 lbs)	Up to 53 Miles
Max Climbing	20%
Front Suspension	80mm Lockout Dual-Crown Fork
Rear Suspension	4-Link Rear Suspension
Drivetrain	Shimano 1×7
Brakes	Dual-Piston Hydraulic Disc Brakes
Rotors	180mm
Tires	26" × 4.0" Puncture-Resistant Fat Tires
Tire Details	Reflective Sidewalls
Net Weight	99.2 lbs
Maximum Payload	300 lbs
Rear Rack Load Capacity	55 lbs
Bike Dimensions	76.9" × 27.2" × 43.3"
Range	Up to 100 miles
Peak Motor Power	880W
Fat Tires	26" × 4"
