The WEPED F1 electric bike is made in Korea and built to order. It rides on fat tires, and it has pedals, a Shimano 7-speed and a thumb throttle, so you can ride on the motor or pedal with assist. As a result, it reaches about 50 mph and covers up to about 124 miles with pedal assist.
Details
The WEPED F1, piece by piece
Next, every feature WEPED lists for the F1, then every add-on, each with WEPED’s own photo.

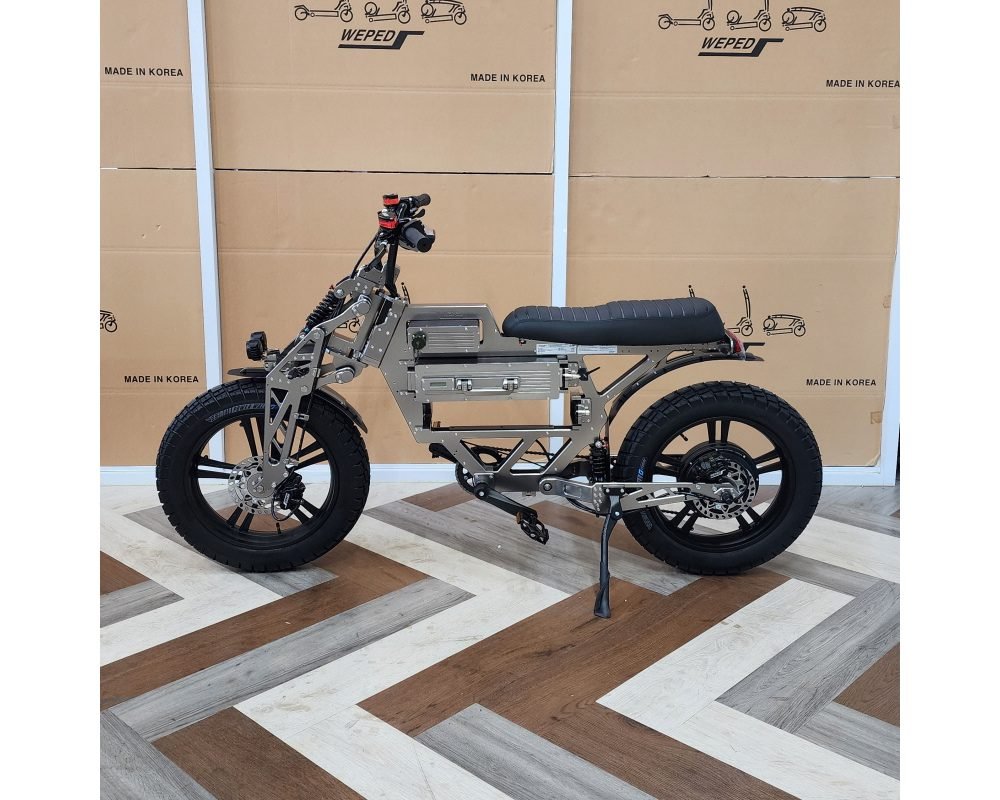

The WEPED F1 electric bike
To begin with, here is WEPED’s photo of the F1. In short, the WEPED F1 is an electric bike on fat tires, with pedals, a thumb throttle and a machined aluminum frame.
WEPED F1 top speed
A WEPED high-torque hub motor carries it to about 50 mph. Even so, real speed depends on rider weight, road and charge.
Throttle or pedal assist
On the throttle alone, the F1 goes about 75 miles. However, as a WEPED F1 pedal assist bike it stretches to about 124 miles on one charge.
20-inch fat tires
Thanks to their width, the 20-inch fat tires grip sand, dirt and wet streets. In addition, the F1 fat tires cushion this electric bike over bumps.

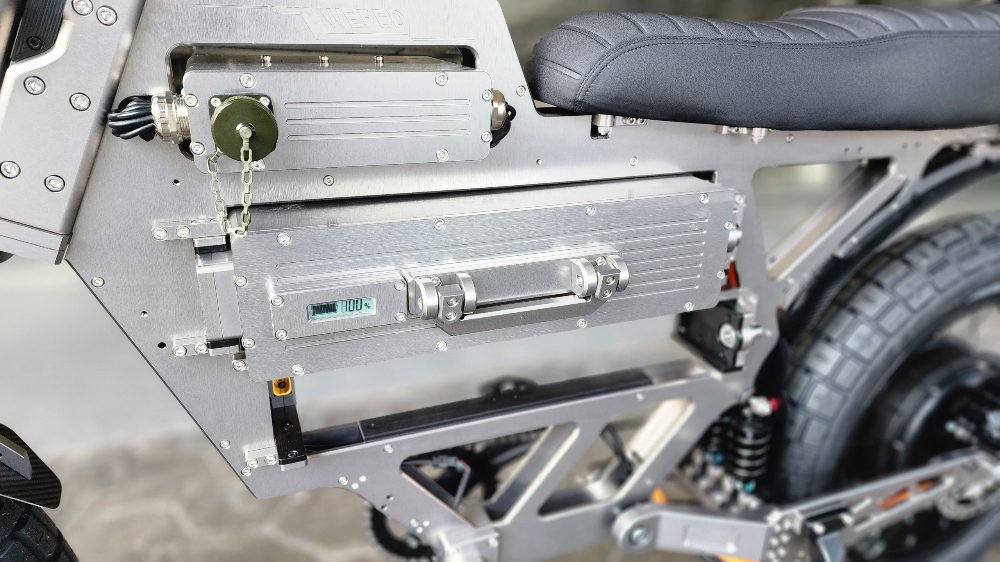

WEPED F1 60V 30A battery
First, the 60V, 30Ah pack uses Samsung SDI 21700 50E cells. As a result, you get about 75 miles on the throttle and up to about 124 miles with pedal assist.

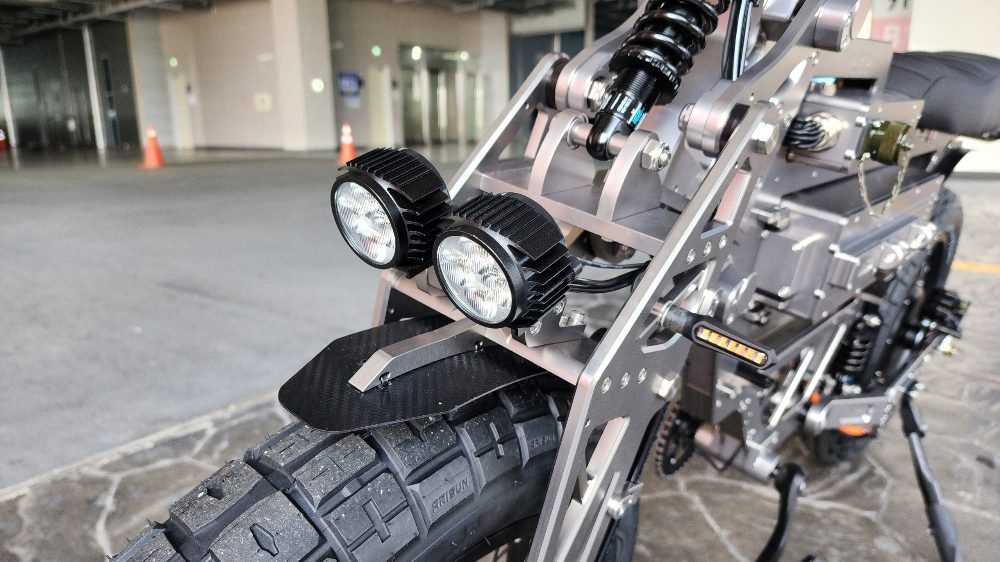

Headlight
Next, a headlight lights the road ahead, so night rides feel safe.

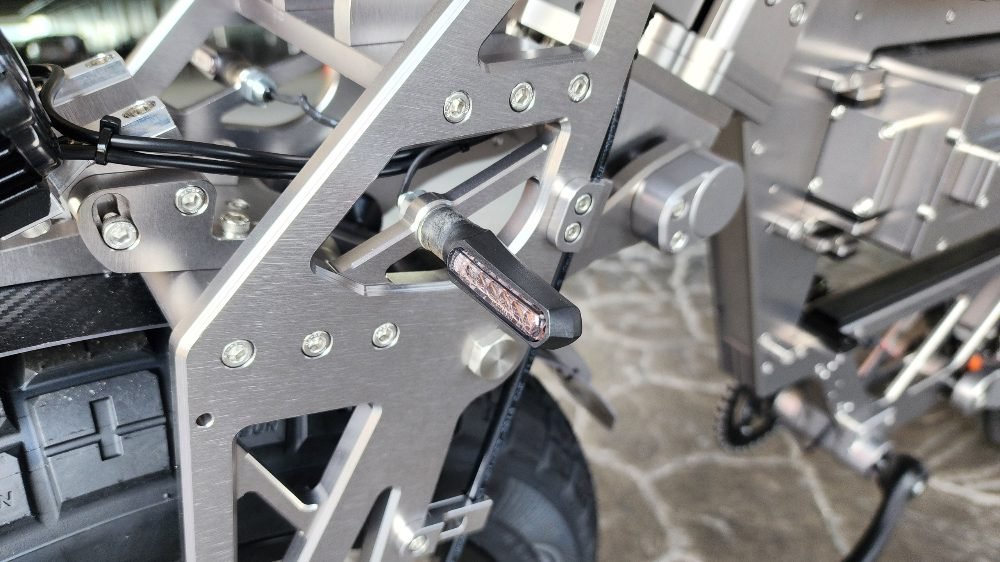

Turn signal LEDs
Also, LED turn signals show traffic where you are going.
WEPED F1 hydraulic brake system
In particular, the hydraulic brake system uses motorcycle-grade calipers. Therefore, it stops a heavy, fast bike with confidence.
Motorcycle-class caliper
Up close, here is one of those calipers. In short, it is built for motorcycle loads, not bicycle ones.
Dashboard
Meanwhile, the dashboard shows your speed, battery and riding mode at a glance. Consequently, you rarely look down for long.

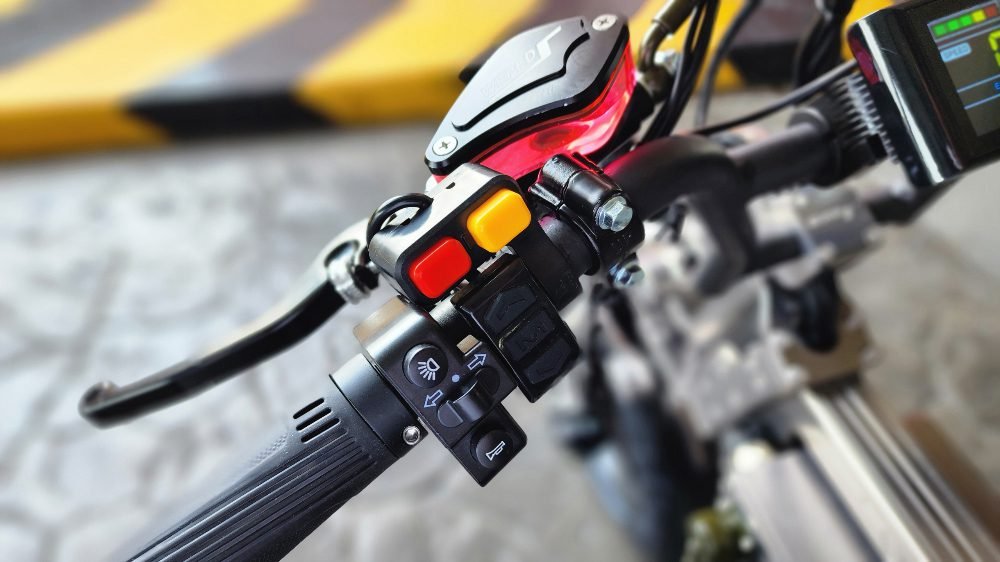

WEPED F1 control switch
Above all, the control switch keeps things simple. For example, the yellow button turns the main power on and off, while the red button turns pedal assist on and off on this WEPED F1 pedal assist bike.

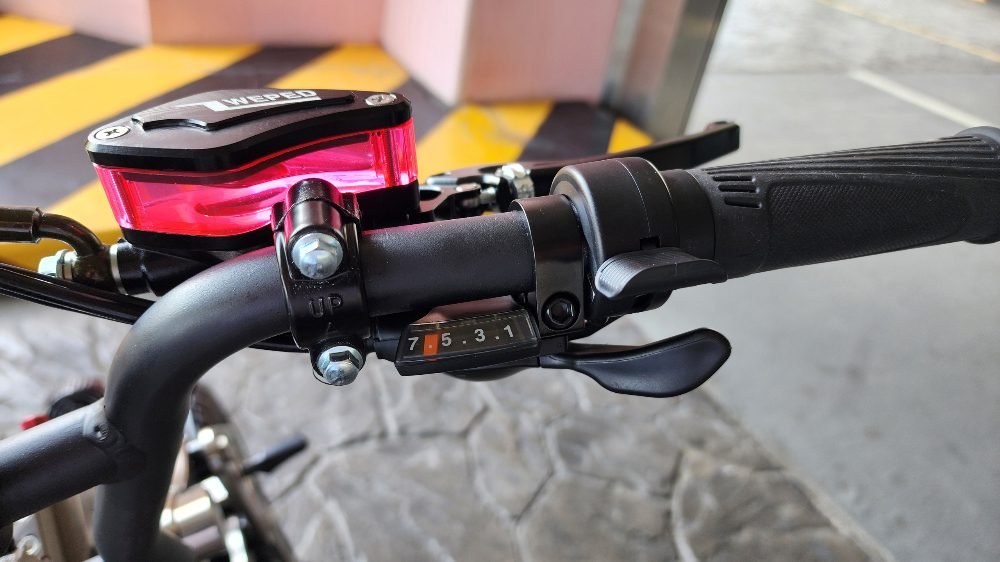

Shimano 7-speed shifter and thumb throttle
On the bar, a Shimano 7-speed shifter sits next to a thumb throttle. As a result, you can pedal in the right gear or just ride on the motor.

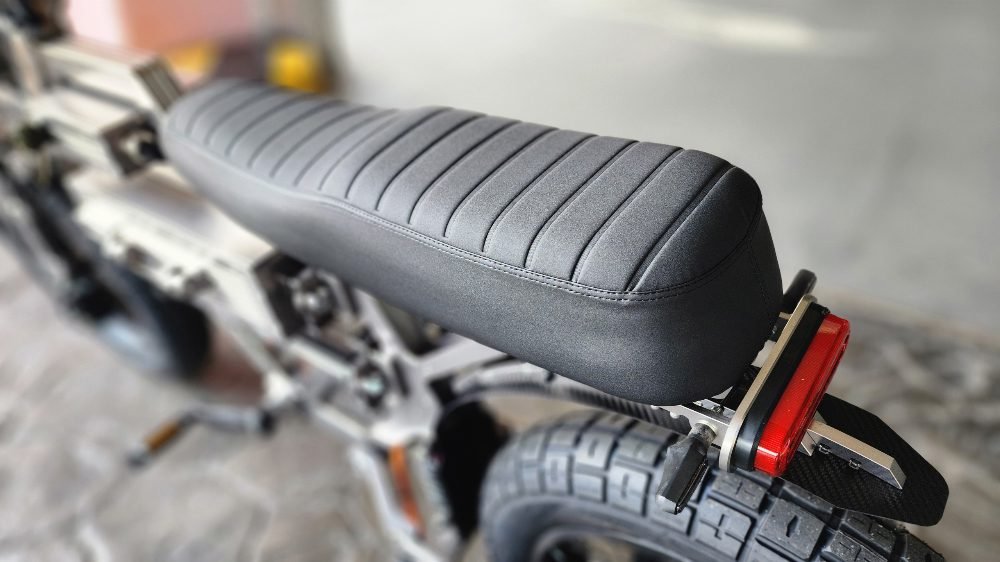

Saddle
In comfort terms, the long saddle gives you room to move. In addition, it keeps longer rides comfortable.

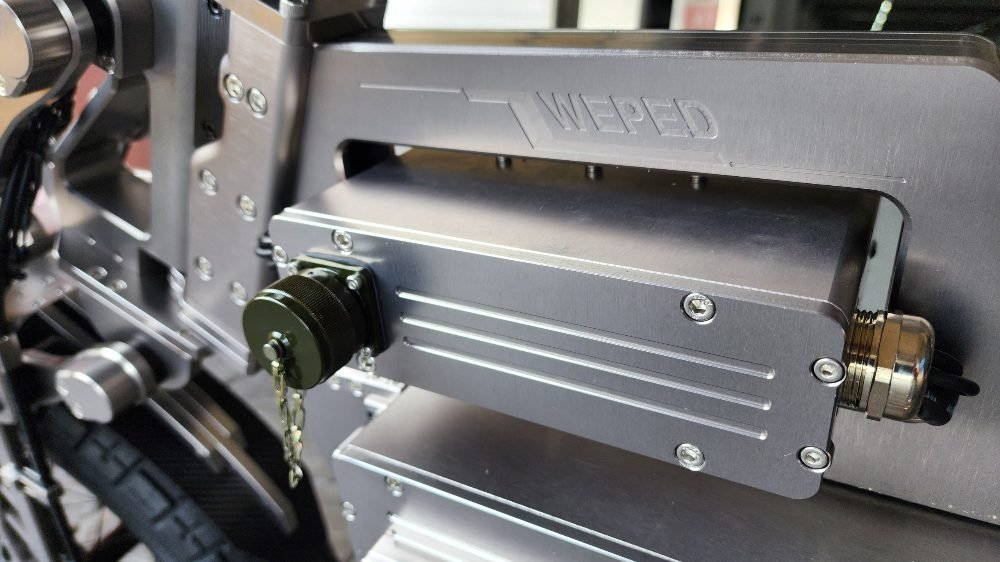

WEPED F1 waterproof fast-charging port
Equally important, the fast-charging port is waterproof. Therefore, rain is not a worry. In fact, this F1 electric bike with fat tires is made for all-weather use.

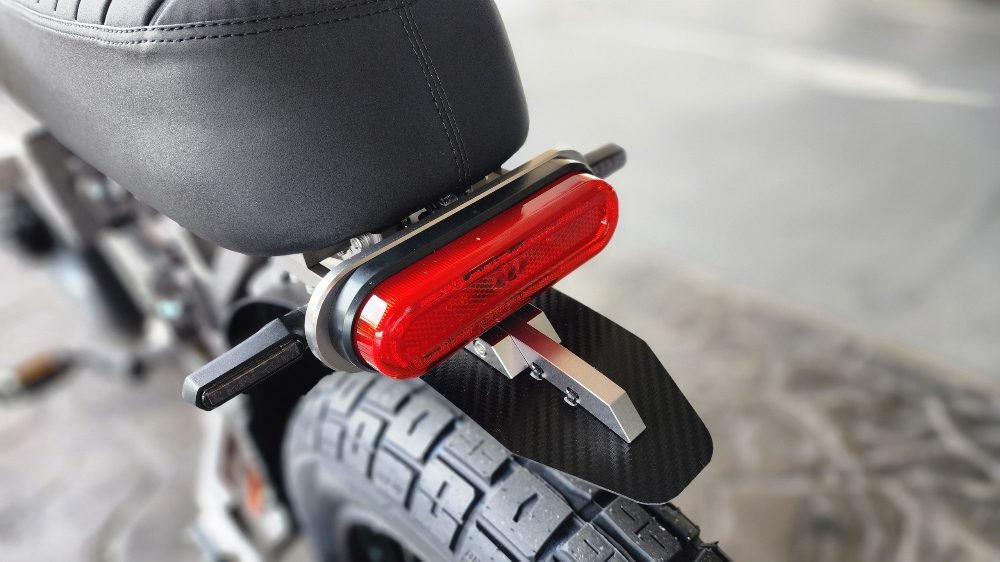

Rear LED
Likewise, a rear LED shows you to traffic from behind, even in rain.

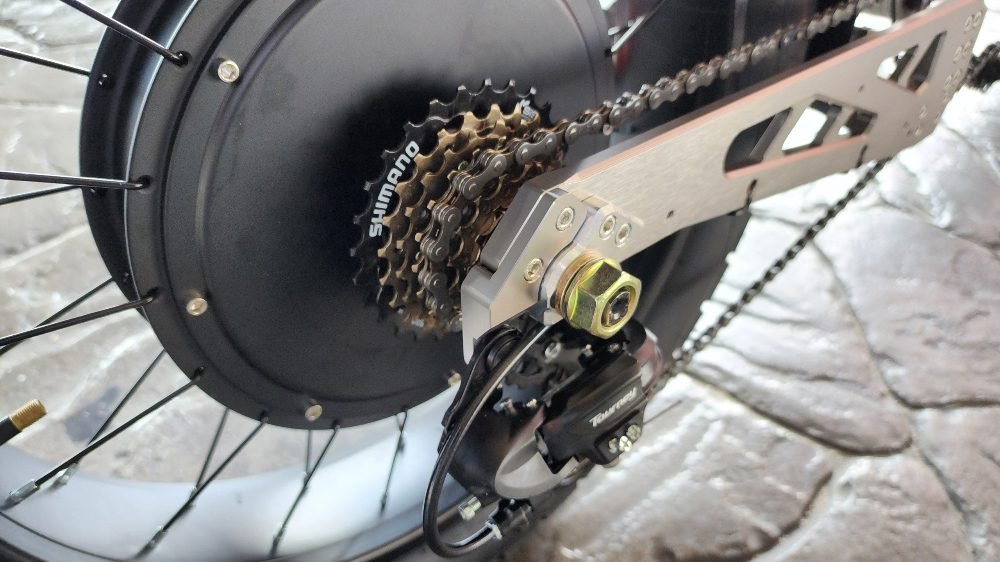

Shimano 7-speed gears and derailleur
At the back, Shimano 7-speed gears and a derailleur handle the pedaling. Consequently, pedal assist feels natural on hills and flats.

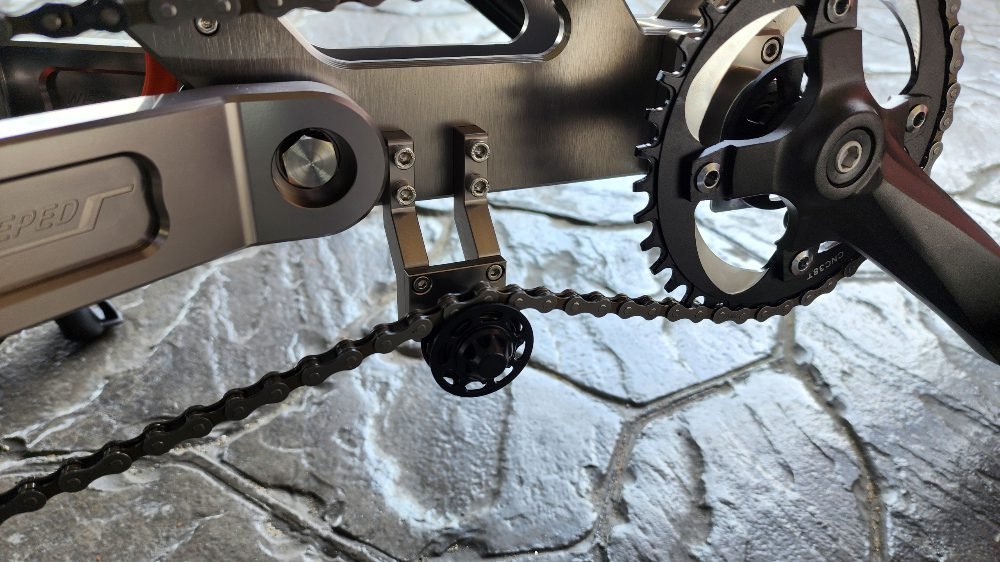

WEPED F1 chain tensioner
Also, a chain tensioner keeps the chain tight. Therefore, it stays on the gears over bumps.

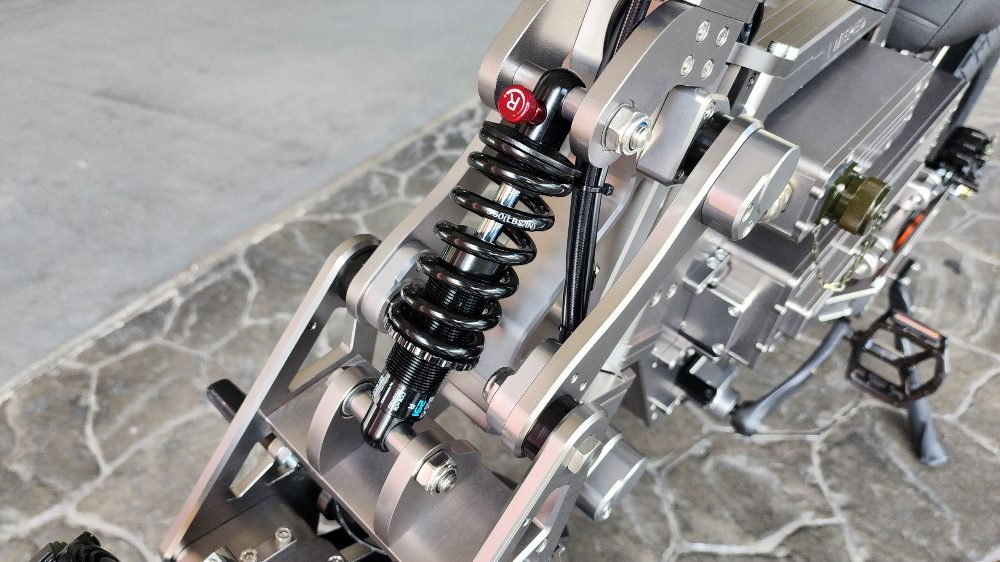

Front suspension, oil damped
Up front, an oil-damped shock smooths out the road. Because of that, small bumps disappear.

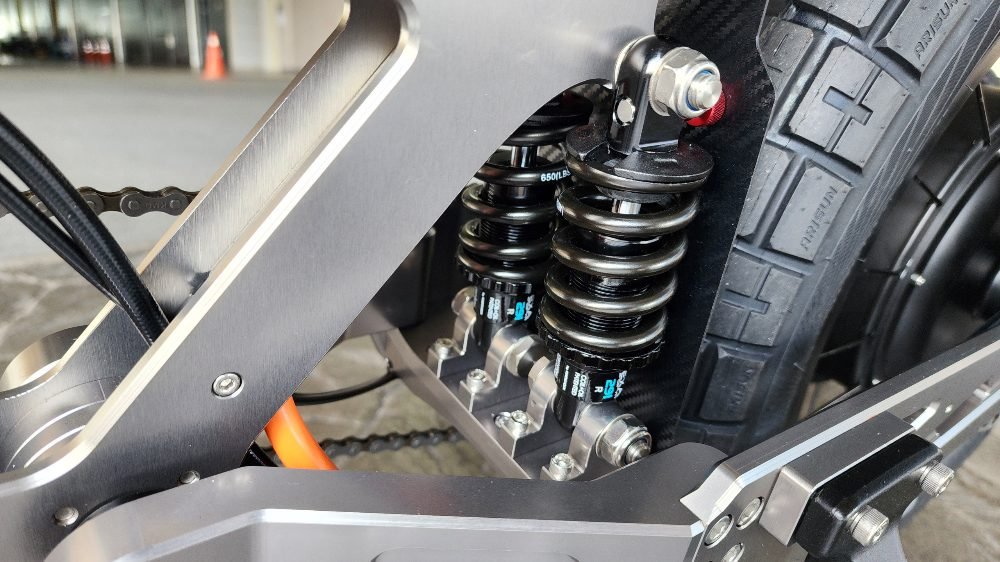

Dual rear suspension, oil damped
Similarly, dual oil-damped shocks carry the rear, so the ride stays calm on rough ground.
WEPED F1 hydraulic hose clips
Finally, hose clips hold the hydraulic lines neatly along the frame. As a result, nothing snags.
WEPED F1 add-ons
Next, every add-on WEPED offers for the F1, each in WEPED’s own photo. You can add any of them in the build sheet above.

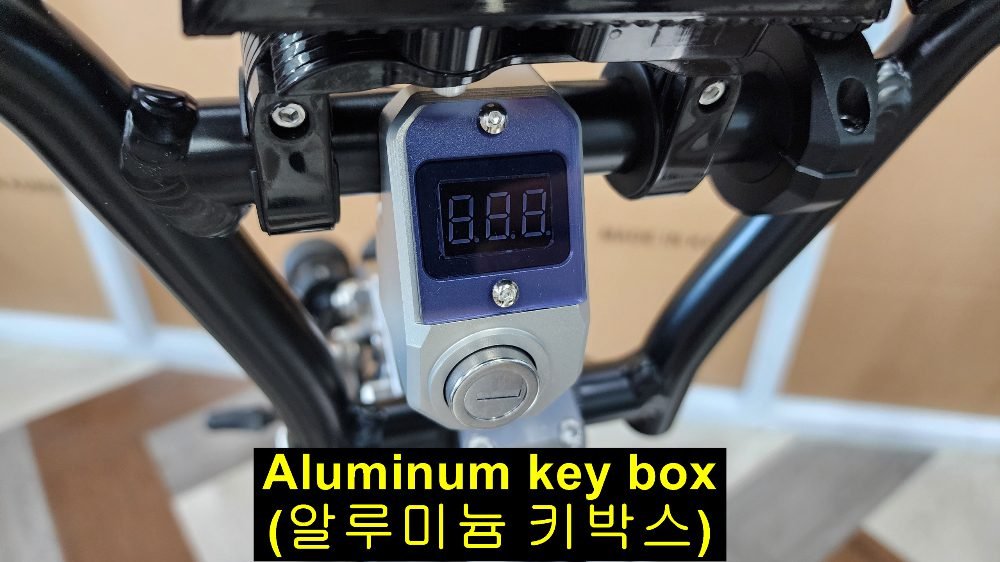

WEPED F1 aluminum key box
Among the add-ons, the aluminum key box replaces the stock key housing with a machined part.

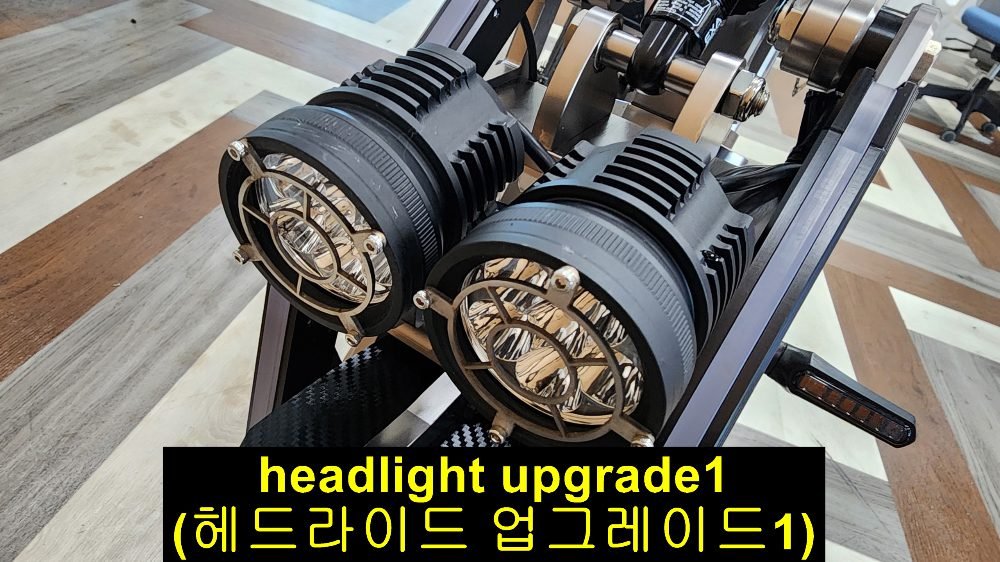

Headlight upgrade, part 1
The headlight upgrade fits twin round lamps up front. In addition, it throws much more light down the road.

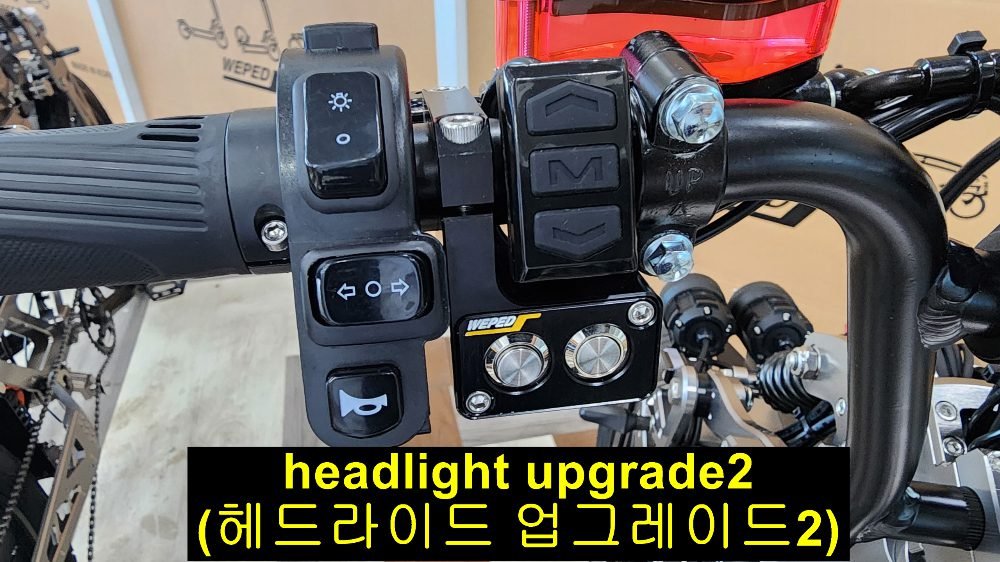

Headlight upgrade, part 2
Besides that, the upgrade adds switch gear to the handlebar, so you control the lamps from your thumb.

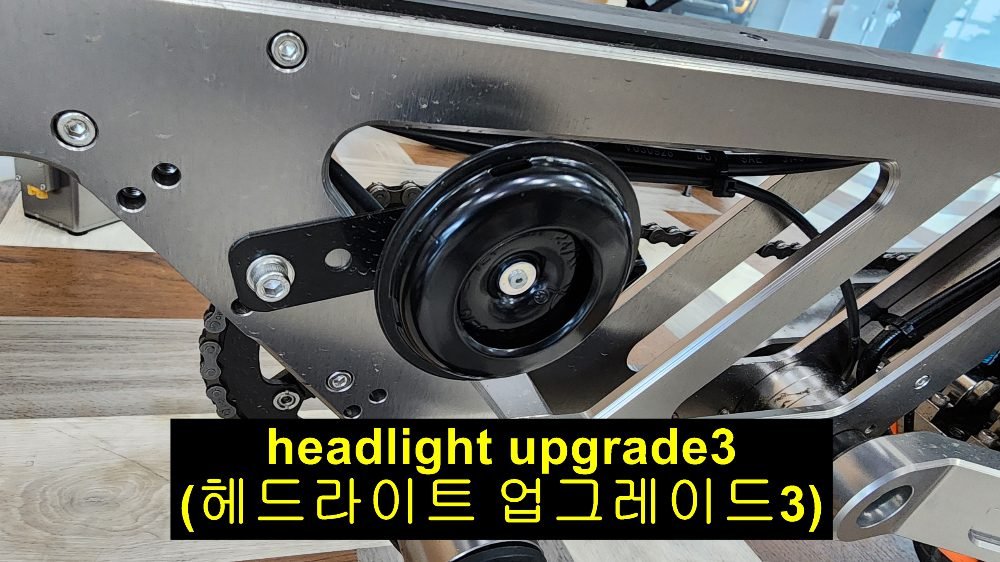

WEPED F1 headlight upgrade, part 3
Here, WEPED shows the upgrade’s horn on the frame, which comes with the kit.

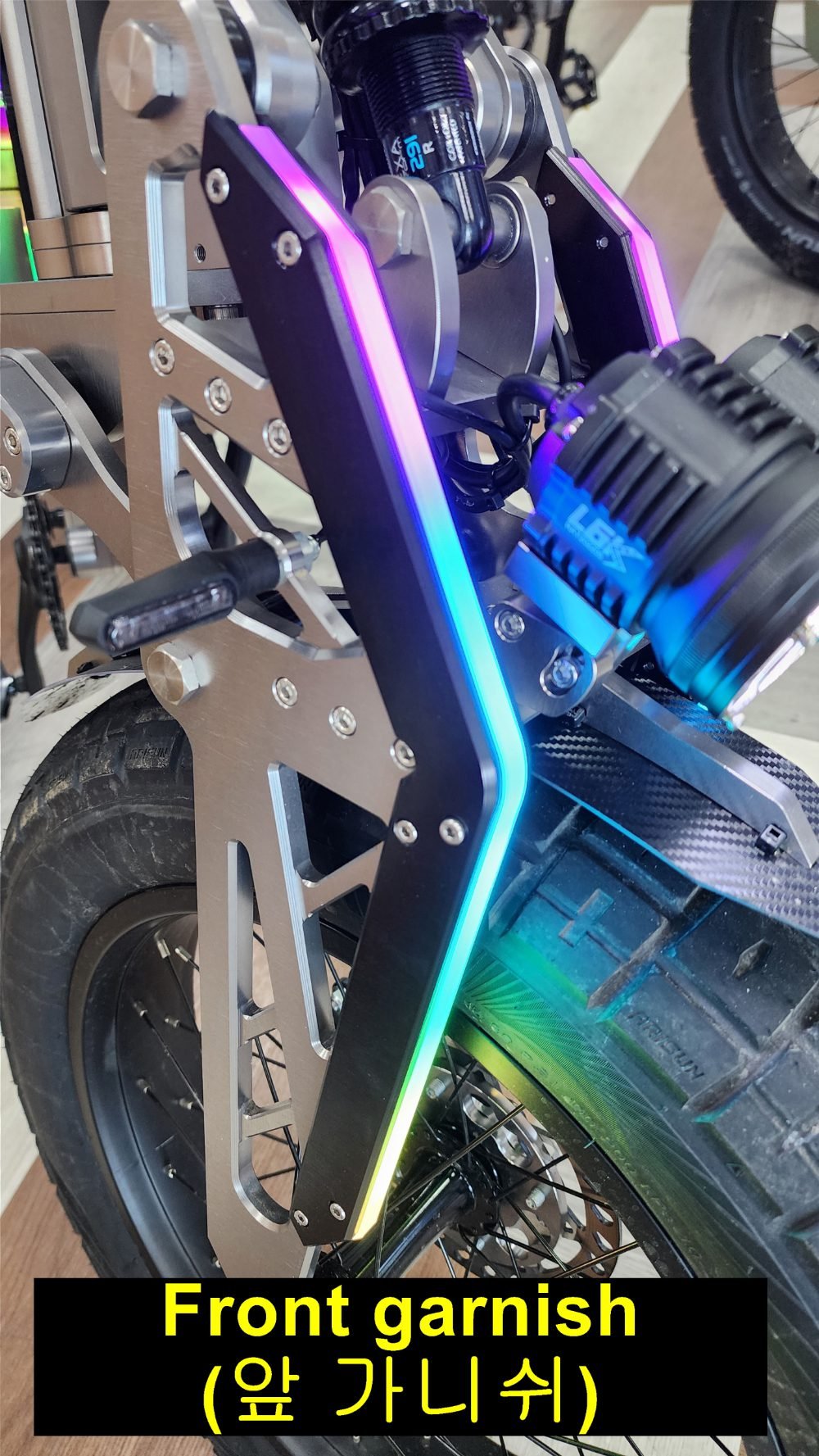

Front garnish
The F1 LED kit adds a lit front garnish along the fork. As a result, the front glows in color at night.

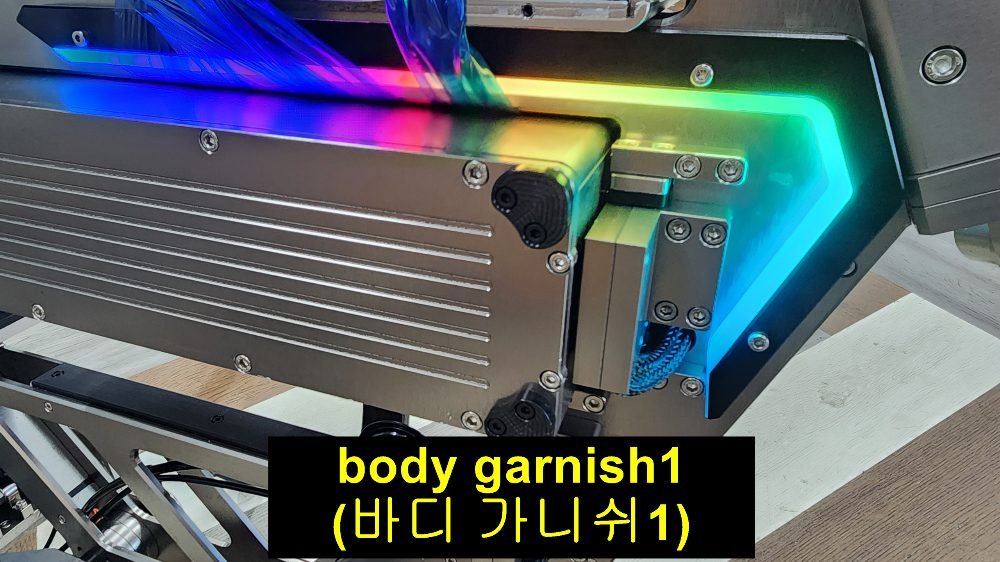

Body garnish, part 1
The kit also lights up the body. For instance, this garnish glows along the battery case.

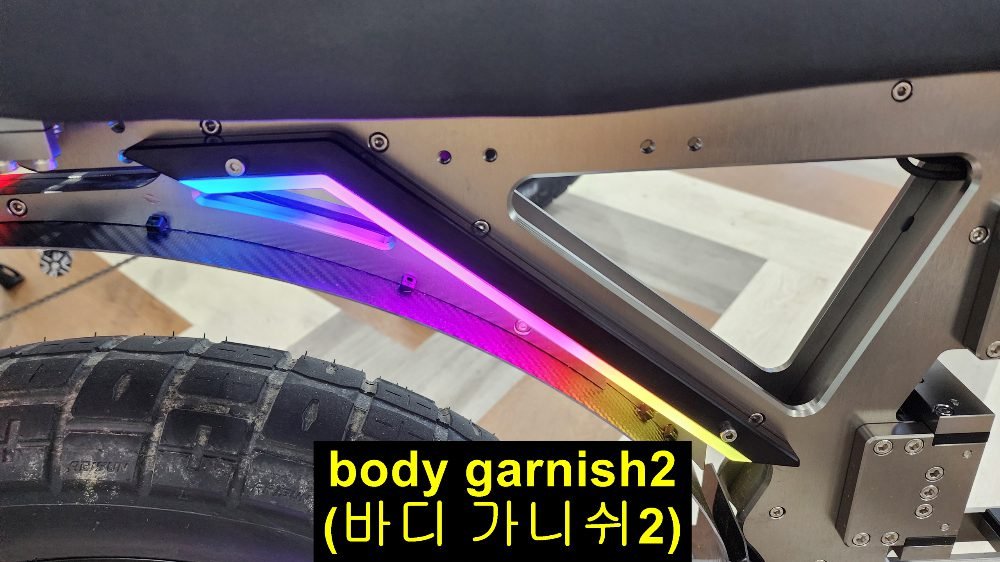

WEPED F1 body garnish, part 2
In addition, another body garnish runs along the lower frame for a full line of light.

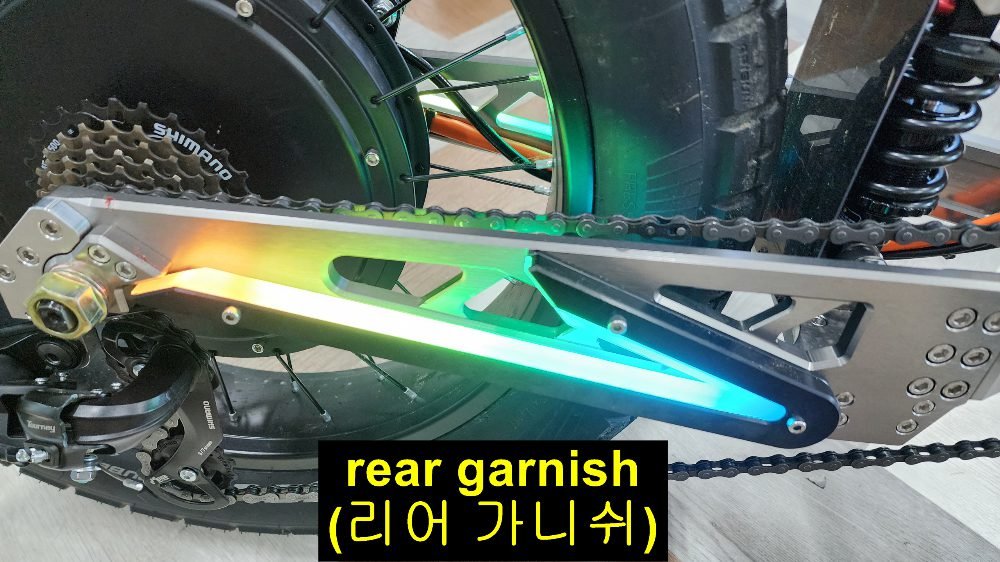

Rear garnish
Likewise, a rear garnish lights up the swingarm.

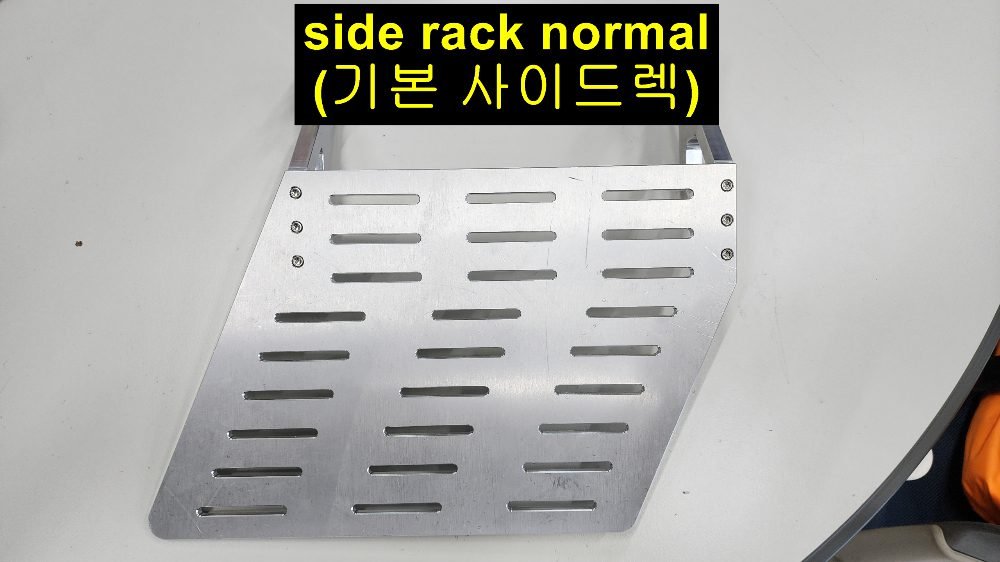

Side rack, basic
For carrying, the basic side rack bolts on the left or the right side for bags and boxes.

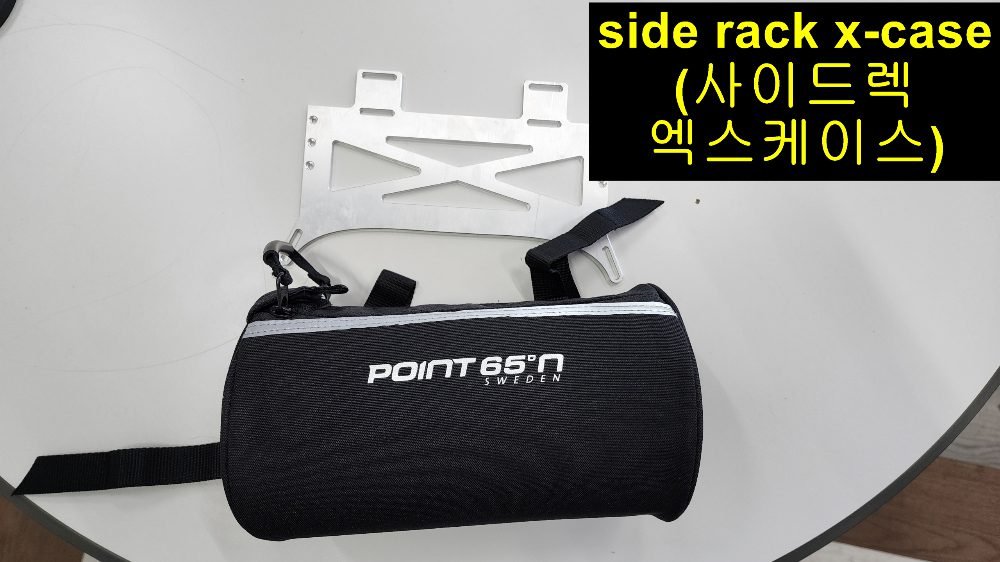

WEPED F1 side rack with X-CASE
Alternatively, you can get the side rack with a Boblbee X-CASE.

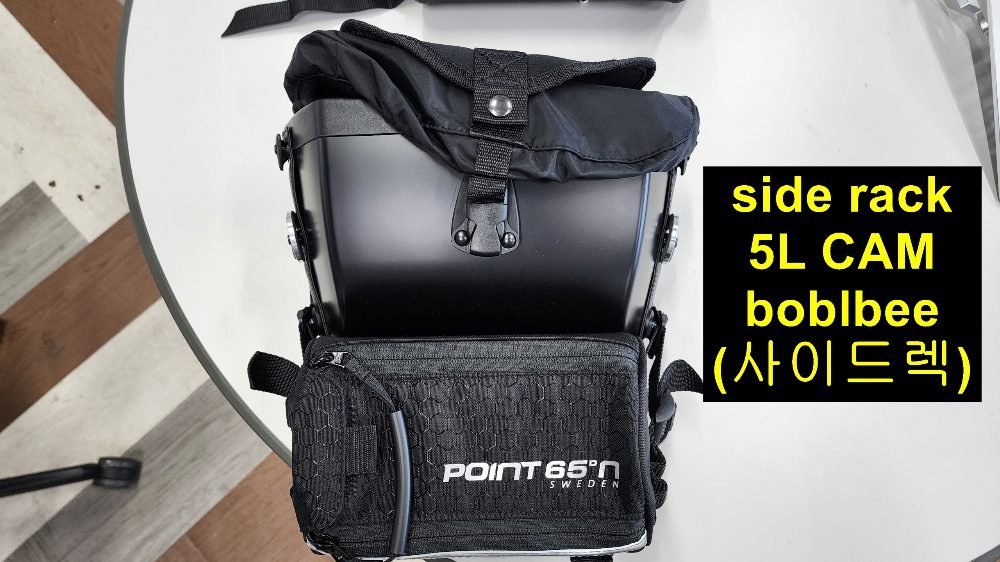

Side rack with 5L CAM case
Or choose the side rack with the larger Boblbee 5L CAM case.

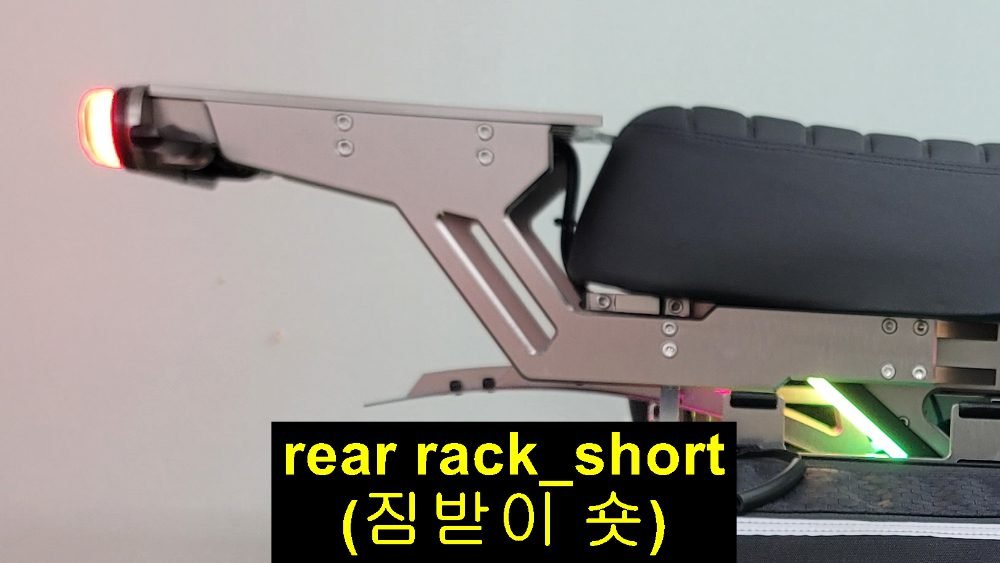

Rear rack, short
Similarly, the rear rack comes in a short or a long version. Here, WEPED shows the short one.

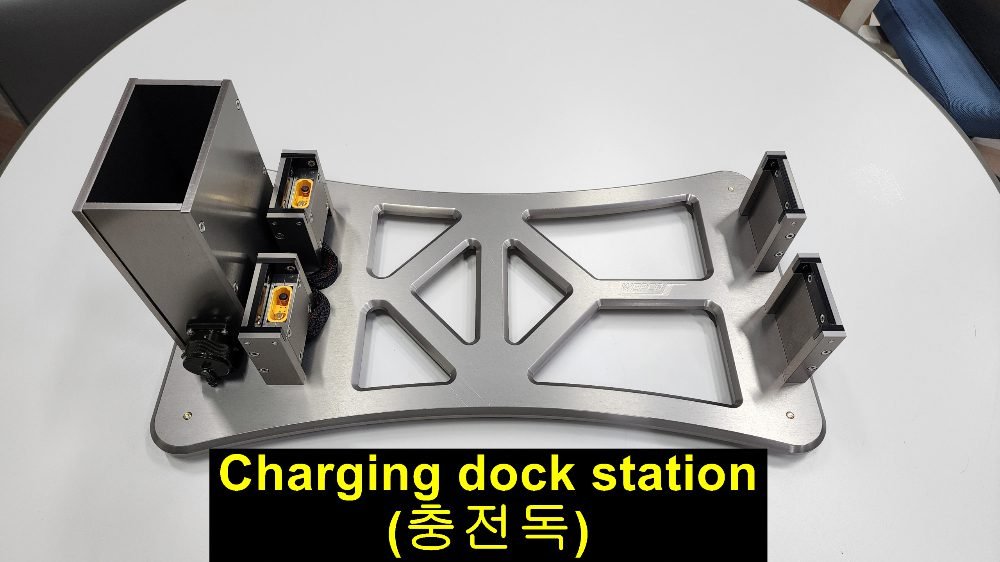

WEPED F1 charging dock station
Finally, the charging dock station holds the battery while it charges off the bike.
